Walk into Weld County Garage looking for an off-road Sierra and you’ll see two badges that look almost identical: AT4 and AT4X. The trucks share a lot of DNA — both come standard with a 2-inch suspension lift, off-road skid plates, hill descent control, and the same engine options. But the gap between them runs roughly $12,000 on the half-ton, and bigger on the heavy-duty.

So what does that money actually buy you? And more importantly for someone in Greeley, Windsor, or Fort Collins — does it matter for the way you’ll really use the truck? Here’s the honest breakdown across both the Sierra 1500 and the Sierra 2500HD.

The Mechanical Story

Suspension: The Single Biggest Difference

If you remember nothing else from this article, remember this: the AT4 and AT4X are separated more by what’s underneath them than by what’s on top. The badging looks similar. The suspension hardware is in a different league.

The AT4 uses Rancho monotube shocks (twin-tube on the heavy-duty). They’re proven, they work, and on a washboard dirt road they’re noticeably better than what comes on a base Sierra. They’re also a lot cheaper to manufacture, which is why every off-road-themed pickup uses some variation on the same idea.

The AT4X replaces those Ranchos with Multimatic DSSV dampers — Dynamic Suspensions Spool Valve. Instead of conventional shims controlling fluid flow inside the shock, DSSV uses precision-machined spool valves that allow GMC to dial in damping curves with race-car precision. The technology was developed by Multimatic for IndyCar and Formula 1, and it’s used in performance vehicles like the Ford GT and the Camaro Z/28.

Translated to a truck, it means two things: the AT4X soaks up trail hits — rocks, ruts, washouts — without transmitting that punishment into the cabin, and it stays composed on pavement. It’s not a one-trick off-road shock. It’s a smarter shock. Whether you’ll feel that on a typical Greeley-to-Estes Park drive depends on how you use the truck. On a real trail, the difference is unmistakable.

The Half-Ton

Sierra 1500: AT4 vs AT4X Side-by-Side

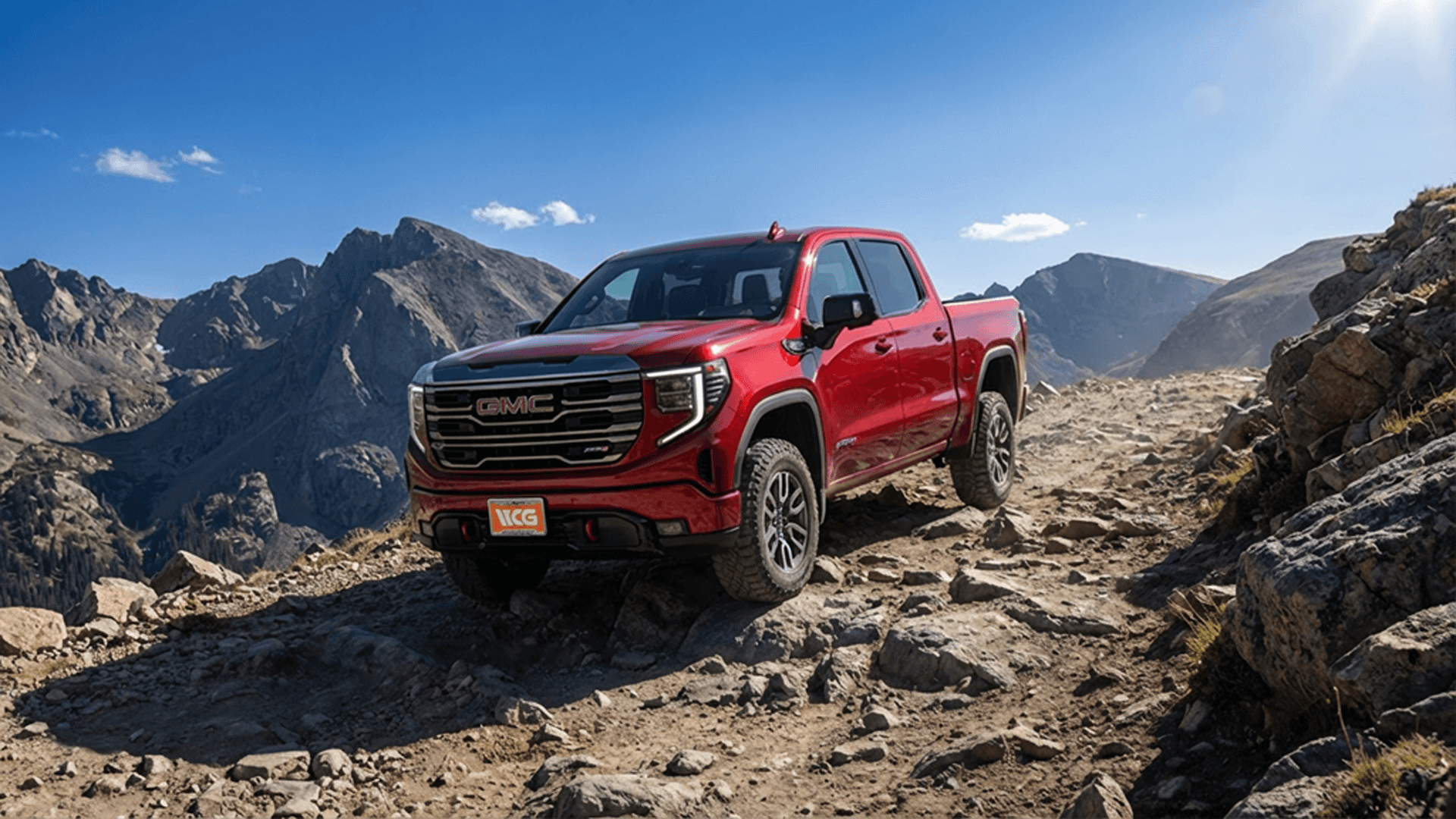

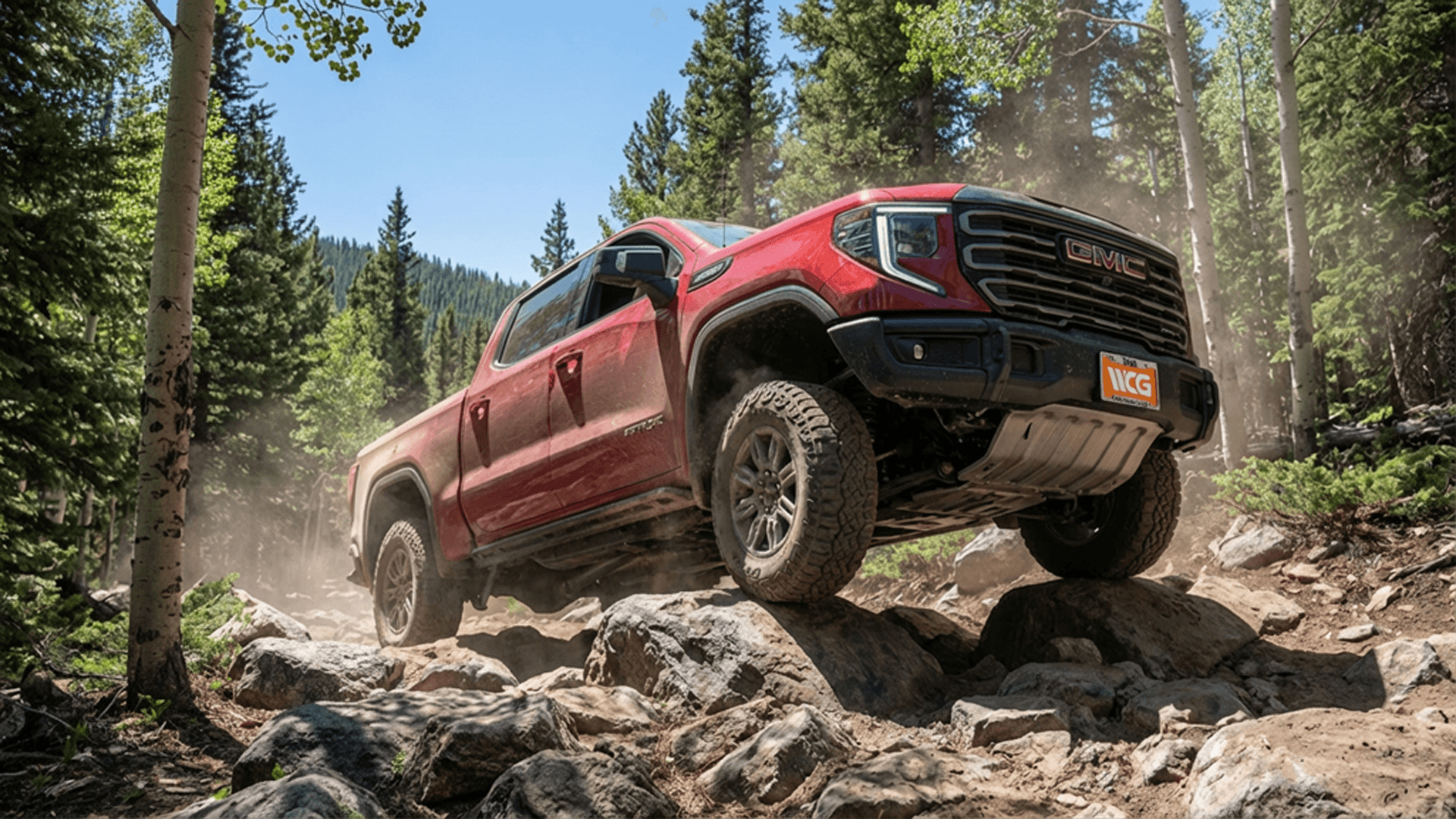

On the 1500, the AT4X separates itself from the AT4 with three big upgrades: front and rear locking differentials, Multimatic DSSV dampers, and a fully-loaded interior. Both come in Crew Cab 4WD only. The AT4 offers a short or standard bed; the AT4X is short bed only.

The Heavy-Duty

Sierra 2500HD: AT4 vs AT4X Side-by-Side

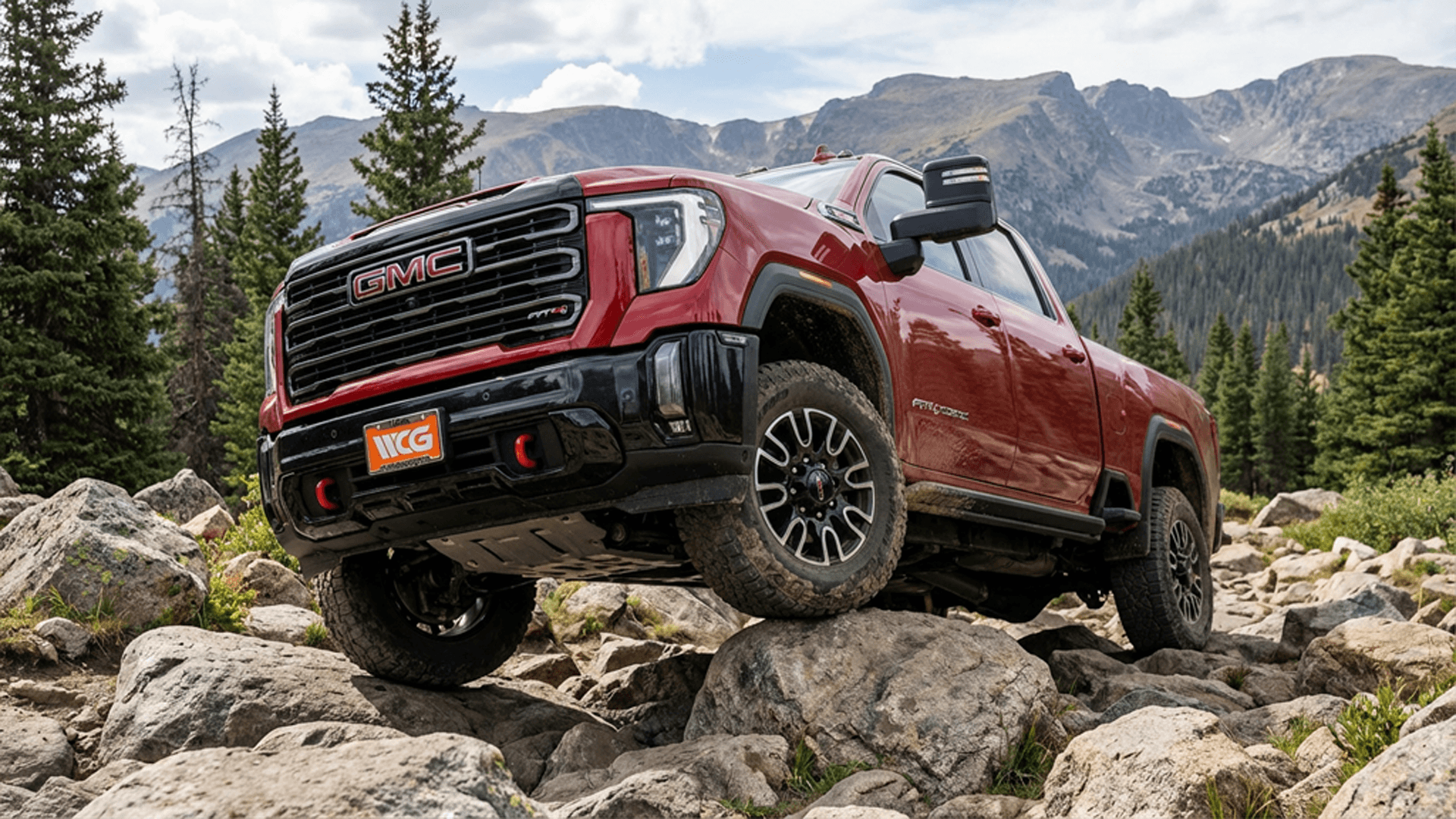

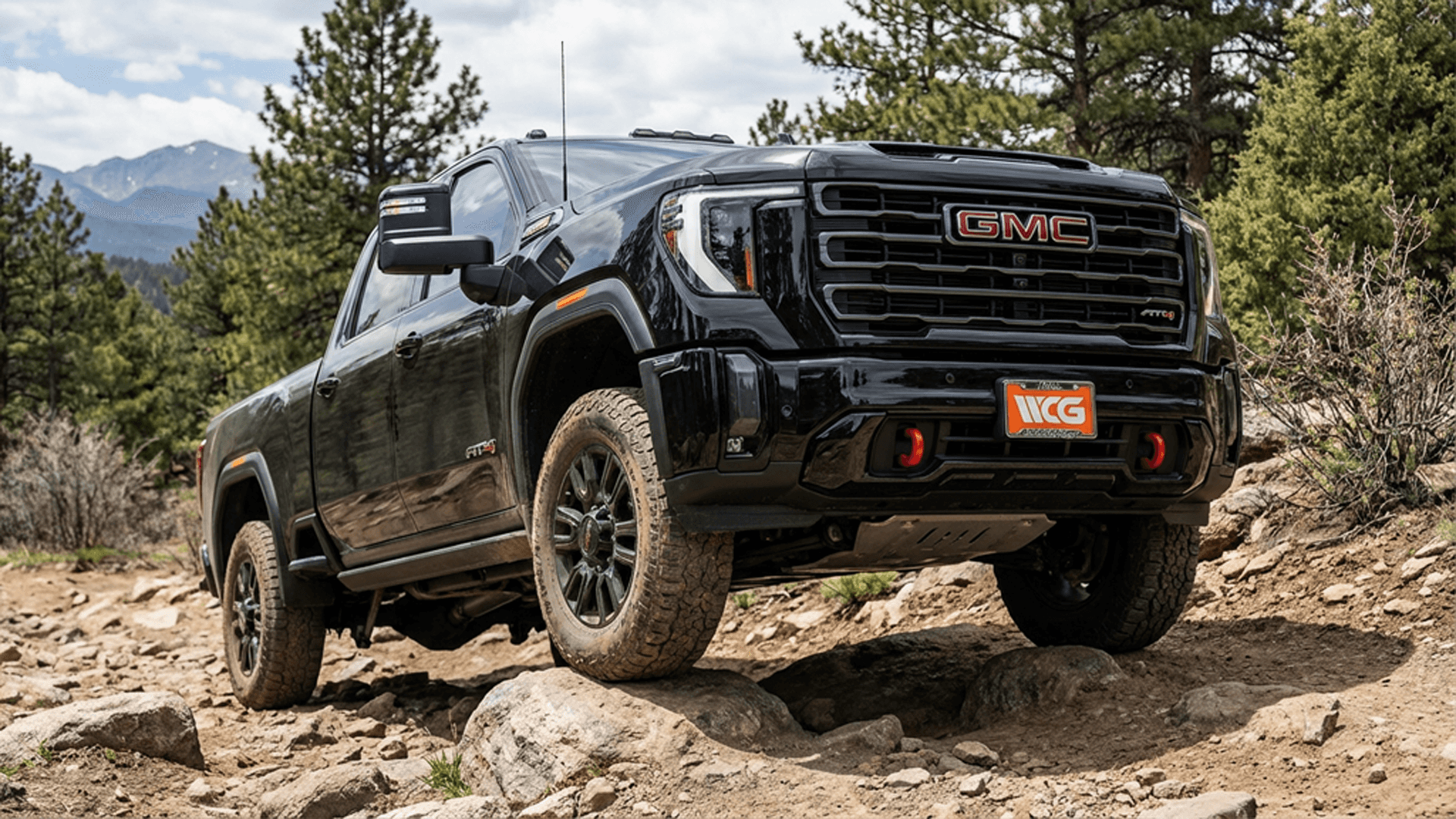

The 2500HD comparison plays out a little differently. The AT4X loses the front locker that defines the 1500 AT4X — heavy-duty front axles aren’t packaged that way at the factory — but it gains a 1.5-inch factory lift on top of the AT4’s stance, and it rolls on serious 35-inch Goodyear Territory MT tires from the factory. Ground clearance jumps to 11.6 inches with a 31.6-degree approach angle and a 25.7-degree departure.

One important note: AT4X is offered on the 2500HD only. If you need the 3500HD’s higher payload or dual rear wheels, AT4 is your only AT-badged option.

Inside the Truck

What the AT4X Premium Pays For — Beyond the Trail

If you only ever judge AT4X by its off-road hardware, you’ll undersell it. The interior is closer to a Denali than to a base off-road truck — which is part of how GMC justifies the price.

Northern Colorado

AT4 vs AT4X for Greeley, Fort Collins & Windsor Drivers

Here’s the honest local read. Most of our Sierra AT4 and AT4X buyers in Weld County, Larimer County, and Boulder County fall into one of three buckets — and the right trim depends on which bucket you’re in.

The “I drive a dirt road and tow occasionally” buyer. If your hardest off-pavement use is a county road to the cabin, a snowy ranch driveway, or pulling a trailer up to Carter Lake, the AT4 is more than enough truck. The Rancho shocks handle washboard fine, the locking rear diff gets you out of mud or snow, and the engine and tow ratings are identical to the AT4X. Saving $12,000 to put toward fuel, hitch upgrades, or a winter tire set is a defensible move.

The weekend trail driver. If you actually point the truck at trails — Holy Cross, Imogene, the Rainbow Trail, Wheeler Lake, or anything in the Medicine Bow — the AT4X earns its keep. Multimatic DSSV is the difference between a truck that survives a rough trail and a truck that’s enjoyable on one. The front locker on the 1500 AT4X is the difference between getting through a rutted climb and winching out of one.

The full-time work truck buyer. If this is a 2500HD that’s going to spend more time hooked to a gooseneck on US-34 than picking through rocks, AT4 is the smarter purchase. You get the same 6.6L Duramax tow ratings, the same 22,500-lb gooseneck capability, and a long-bed option (which AT4X doesn’t offer). AT4X buys you off-road specialization that fleet duty rarely uses.

Winter capability is a wash between the two. Both trims handle Colorado snow with confidence — the all-wheel traction, the heavy-duty engine cooling, and the chassis are essentially identical. The AT4X’s 33-inch (or 35-inch on HD) MT tires are louder on I-25 in dry weather and will wear faster than the AT4’s all-terrains.

FAQ

Sierra AT4 vs AT4X: Common Questions
